Features:
1.Precise mechanical dimensions: low insertion loss + high return loss.
2.The crimping part is designed with a new and unique structure. It requires no glue injection, no grinding, no consumables.
3.Adopt Pre-embedded fiber optic structure: It has the advantages such as good installation quality, high success rate and fast installation.
4.It can be used over and over again, easy to operate.
5.Environmentally friendly: All materials meet ROHS standards.
Specification:
Loss: ≤0.3dB (MAX0.5)
Return loss: ≥50dB
Model: FC/UPC
Optical fiber: 2.0*3.0 butterfly cable
Temperature change rate: 0.5dB or less (-40 to +85°C)
Application:
Used to open FTTH fiber terminal
Connection box, cabinet, terminal box, etc.
Recovery and maintenance in the event of an accident such as fiber breakage
LAN, WAN, data and video transmission
Construction and maintenance of end user fiber access
Fiber access of mobile base stations
Package List:

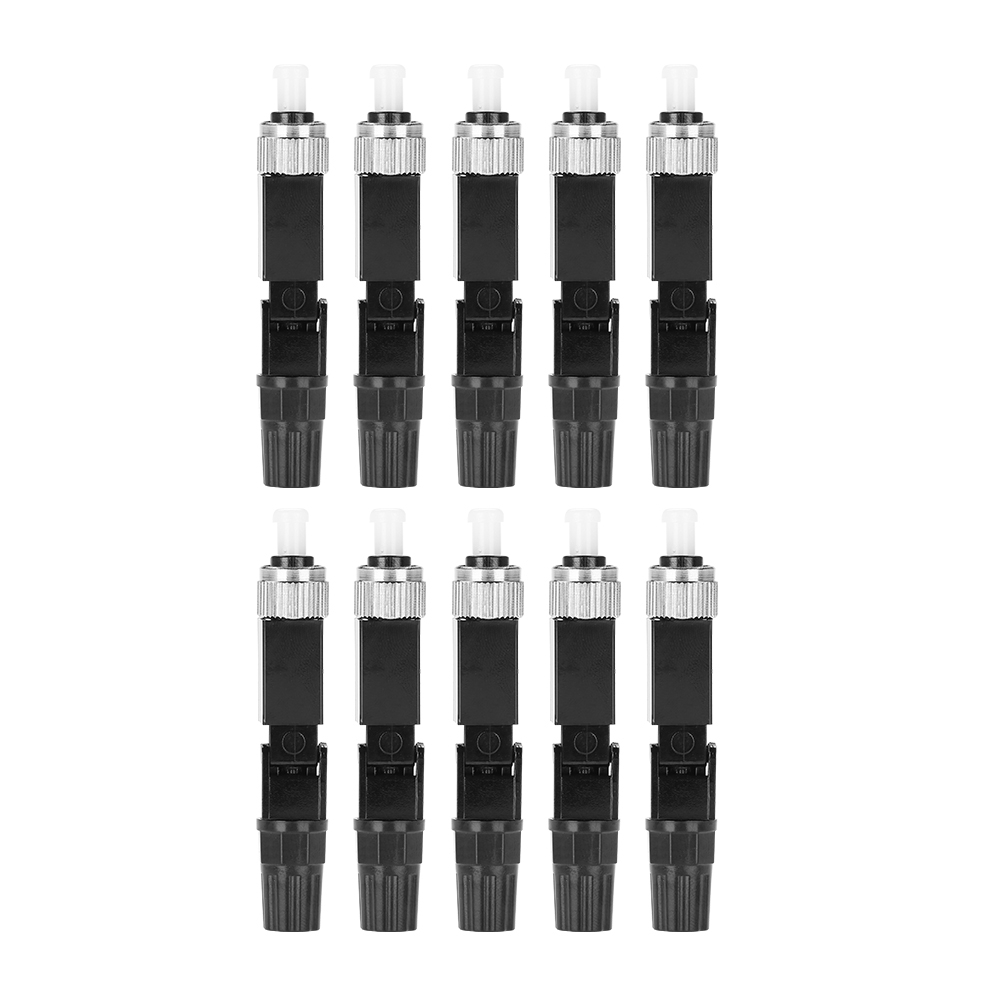

10 x FC Optic Fiber Quick Connector
